Belajar Docker Swarm // Part 2 - Deploy Traefik sebagai Reverse Proxy

Lanjutan dari Part 1 - Deploy Service Pertama di Swarm

Part 2, Traefik sebagai Reverse Proxy

Alasan saya simpel, di sini saya pake traefik karena paling banyak tutorialnya.

Untuk di awal kita akan mencoba setup reverse proxy (setup domain, basic-auth, dll) menggunakan traefik.

Deploy Traefik

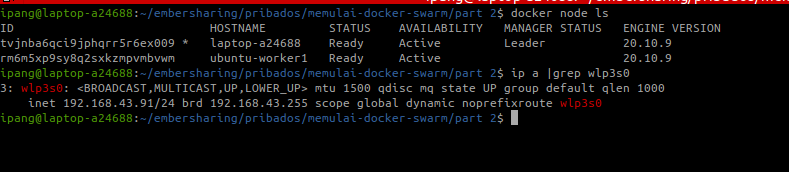

1. Pertama cek IP swarm manager

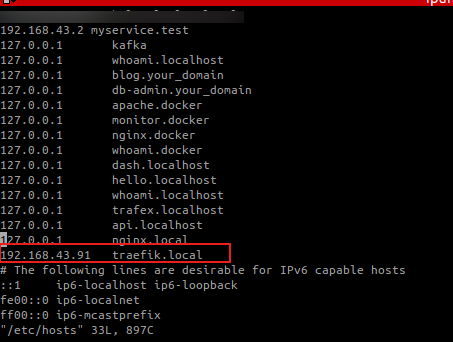

2. Tambahkan di /etc/hosts



3. Buat docker-compose-traefik.yml

version: "3.4"

services:
  traefik:
    image: traefik:v2.4
    ports:
      - 80:80
    #allow traefik to access docker socket
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
    deploy:
      placement:
        constraints:
          #only run traefik at manager
          - node.role == manager
      labels:
        #enable traefik
        - traefik.enable=true
        #enable traefik only on "traefik" network
        - traefik.docker.network=traefik
        #use "web" entrypoint
        - traefik.http.routers.traefik-http.entrypoints=web
        - traefik.http.routers.traefik-http.service=api@internal
        #source port from traefik web UI
        - traefik.http.services.traefik-http.loadbalancer.server.port=8080
    command:
      - --log.level=DEBUG
      # Enabling docker provider
      - --providers.docker=true
      # Enable Docker Swarm mode
      - --providers.docker.swarmmode
      # Do not expose containers unless explicitly told so
      - --providers.docker.exposedbydefault=false
      # Traefik will listen on port 8080 by default for API request.
      - --api.insecure=true
      # Traefik will listen to incoming request on the port 80 (HTTP)
      - --entrypoints.web.address=:80
    networks:
      - traefik

networks:
  traefik:
    external: true

4. Deploy traefik,

docker stack deploy -c docker-compose-traefik.yml traefik

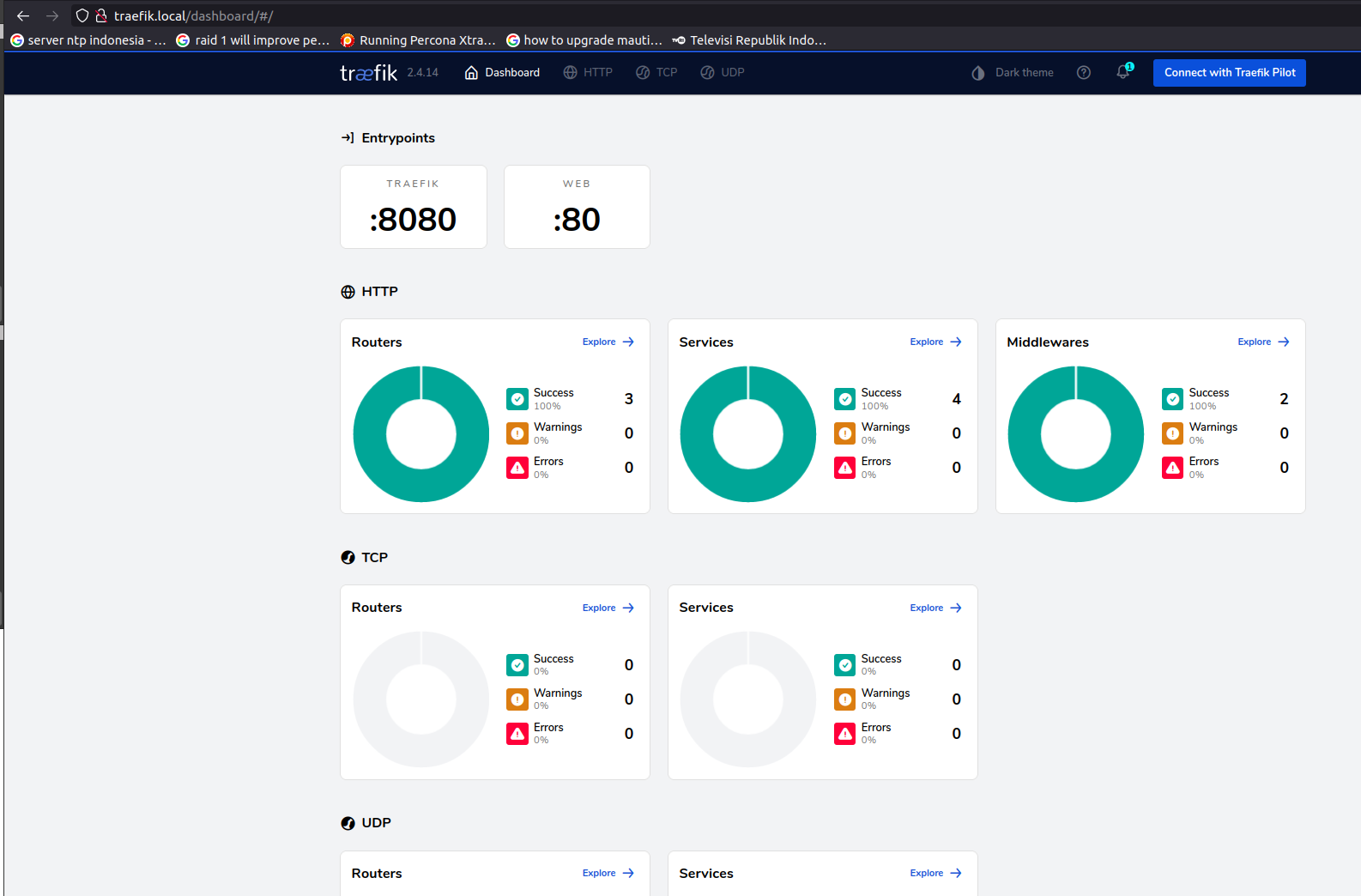

5. Kita cek di browser, ketikan traefik.local di address bar





Basic Auth di Traefik

Harusnya setelah melakukan langkah-langkah di atas, kita akan bisa langsung membuka dashboard traefik tanpa harus memasukan otentikasi. Biar lebih aman, kita akan setup traefik dengan basic-auth login, berikut caranya:

1. Kita buat dulu otentikasi untuk basic-auth

echo $(htpasswd -nbB sahamaneh "aingmacan") | sed -e s/\\$/\\$\\$/g

2. Buka lagi docker-compose-traefik.yml

version: "3.4"

services:
  traefik:
    image: traefik:v2.4
    ports:
      - 80:80
    #allow traefik to access docker socket
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
    deploy:
      placement:
        constraints:
          #only run traefik at manager
          - node.role == manager
      labels:
        #enable traefik
        - traefik.enable=true
        #enable traefik only on "traefik" network
        - traefik.docker.network=traefik
        #give traefik domain, to access it via browser
        - traefik.http.routers.traefik-http.rule=Host(`traefik.local`)
        - traefik.http.middlewares.admin-auth.basicauth.users=sahamaneh:$$2y$$05$$i8WQb772W13f0jP.1tTDteaivolUBDjf1YTbjzk0JD33ktIQjsDXe
        - traefik.http.routers.traefik-http.middlewares=admin-auth
        #use "web" entrypoint
        - traefik.http.routers.traefik-http.entrypoints=web
        - traefik.http.routers.traefik-http.service=api@internal

        #source port from traefik web UI
        - traefik.http.services.traefik-http.loadbalancer.server.port=8080
    command:
      - --log.level=DEBUG
      # Enabling docker provider
      - --providers.docker=true
      # Enable Docker Swarm mode
      - --providers.docker.swarmmode
      # Do not expose containers unless explicitly told so
      - --providers.docker.exposedbydefault=false
      # Traefik will listen on port 8080 by default for API request.
      - --api.insecure=true
      # Traefik will listen to incoming request on the port 80 (HTTP)
      - --entrypoints.web.address=:80
    networks:
      - traefik

networks:
  traefik:
    external: true

3. Update stack traefik

docker stack deploy -c docker-compose-traefik.yml traefik

4. Tunggu beberapa saat, lalu cek kembali “traefik.local” di browser, harusnya sudah muncul pop up otentikasi
